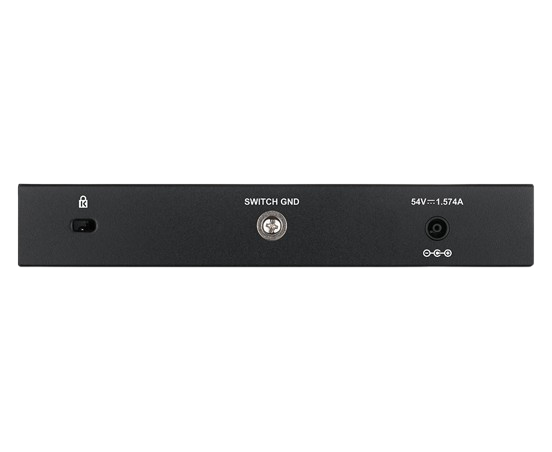

8-Port Gigabit PoE Smart Managed Switch DGS-1100-08P
Control: 802.3x Flow
Head-of-line (HOL) Blocking Prevention: Yes
Store & Forwarding Forwading: Yes
Comply with RoHS 6: Yes
Energy Efficiency Ethernet (EEE): Yes
Interfaces:
- 8 x 1000Base-T ports
- Auto MDI/MDIX
- 8 x 10/100/1000 Mbps PoE
DRAM Size: 48K Bytes
CPU Speed: 62.5 MHz
Flash Memory Size: 2 MB
Packet Buffer Size: 1.5 Mbits
FAN: Fanless
Jumbo Frame: 9,216 Bytes
MAC Address Table Size: 4160
IGMP Snooping Max: 128 IGMP Snooping Groups
Maximum Forwarding Rate: 11.9 Mbps
Power Input: AC:100 ~ 240 V
Temperature:
- Operating: 0 ~ 40 °C
- Storage: – 40 ~ 70 °C
Humidity:
- Operation 0%-90% RH
- Storage: 0% – 95% RH
Operating Altitude: 2000 m
Standby Power Consumption: 2.0 W
Maximum Heat Dissipation: 265.85 BTU/hr
Acoustic: 0 dB
MTBF: 786,841 hours
VLAN: 802.1Q
VLAN Groups:
- Port-based VLAN
- Voice VLAN
- Surveillance VLAN
- Asymmetric VLAN
