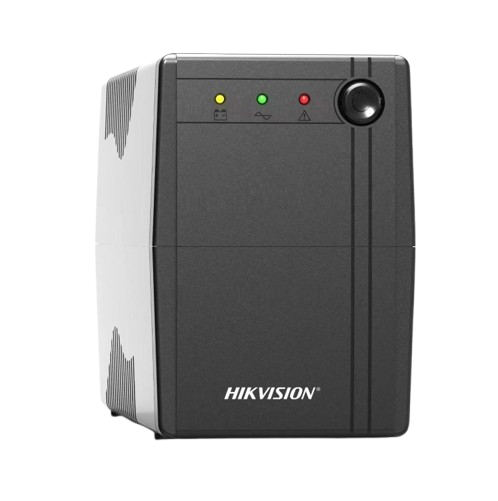

HikVision DS-UPS600 UPS, 600VA /360 W
Power
UPS Capacity: 600 VA / 360 W
Input
Input Voltage Range: 140 VAC to 290 VAC
Input Frequency: 50/60 Hz self-adaptive
Plug Type: AU TYPE I; TYPE H; Type B (NEMA 5-15); TYPE L (10A); UK TYPE G; Schuko
Output
Output Voltage Range: 210 VAC to 235 VAC
Output Frequency: 50/60 Hz ± 0.5 Hz self-adaptive
Transfer Time: ≤ 10 ms
Waveform: PWM
Outlet Type: AU TYPE I; TYPE H; Type B (NEMA 5-15); Universal; TYPE L (10/16A)
Outlet Number: 2;Battery outlet*4 & Bypass*2
Battery
Battery Type: 12 V/7 Ah, lead-acid battery
Recharge Time: 4-6 hours to recover to 90% capacity
Typical Backup Time:
Run time at 60w: 35 min
Run time at 100w: 20 min
Run time at 200w: 3 min
Protection
Full Protection: Surge protection, Overload protection, Discharge protection, Overcharge protection
Indicator
Display: LED indicator
Working Mode (AC Mode): Solid green
Charging Mode (DC Mode): Solid red
Overloading Mode: Flashing yellow
Alarm
Charging Mode (DC mode): Sounding every 8 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
General
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F）
Operating Humidity: 30% to 90% (non-condensing)
Dimension: 274 mm × 95 mm × 139 mm (10.79″ × 3.74″ × 5.47″)
Weight: Approx. 4.2 kg (9.26 lb)
