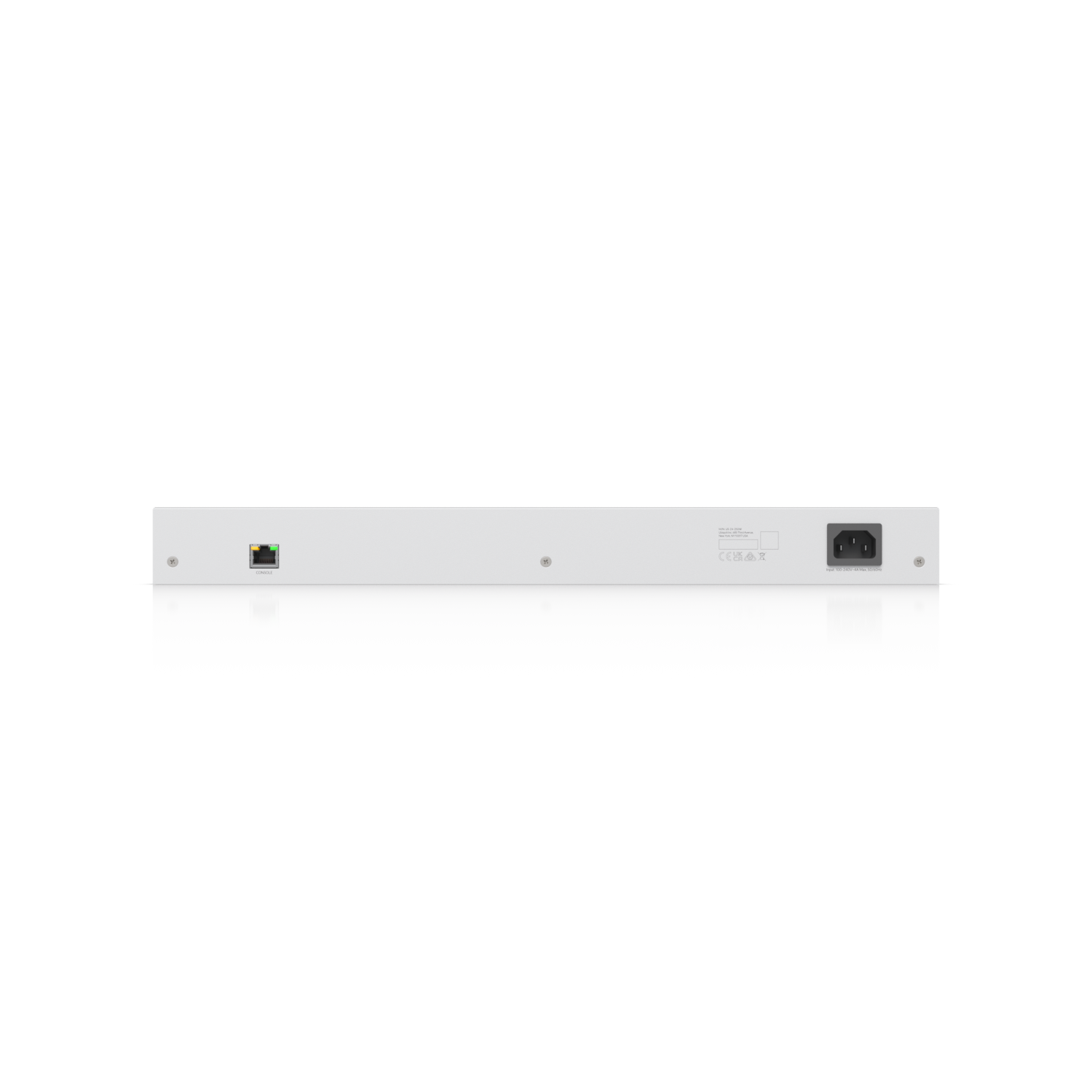

Standard 24 PoE (Gen1) US-24-250W (250W)
Overview
Dimensions: 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7″)
Port Layout:
- 1 GbE RJ45: 24 (All PoE+) (1G/100M/10M)
- 1G SFP: 2
Max. PoE Output: Up to PoE+
Total PoE Availability: 250W
Redundancy: DC Power Backup
Form Factor: Rack mount (1U)
Performance
Switching Capacity: 52 Gbps
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 38.69 Mpps
Layer 2 Features
LACP Port Aggregation ✓
STP & RSTP ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
STP & RSTP ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) ✓
IGMP Snooping ✓
802.1X Control ✓
MAC-Based ACLs & Device Isolation ✓
DHCP Snooping & Guarding ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
MAC Address Blocking ✓
IP-Based ACLs & Network Isolation ✓
MAC-Based Port Restriction ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
LLDP-MED ✓
Voice VLAN ✓
Loop Protection ✓
Hardware
PoE Ports
- PoE+: 24
Max. PoE Wattage per Port by PSE
- PoE: 17W
- PoE+: 34W
Max. Power Consumption: 30W (Excluding PoE Output)
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 250W
Supported Voltage Range: 100—240V AC
Management: Ethernet
Weight: 4.7 kg (10.4 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm (15.7-47.2″)
ESD/EMP Protection: Air/contact: ± 24kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
LEDs:
- Ethernet ✓
- SFP ✓
- System ✓
Certifications: CE, FCC, IC
NDAA Compliant ✓
Software
Application Requirements:
- UniFi Network: Version 6.3.51 and later
