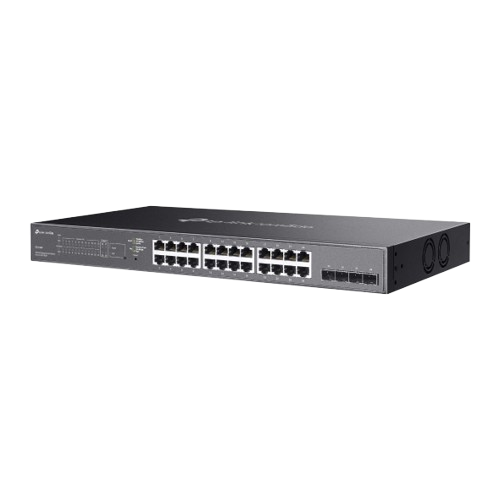

TP-Link 28-Port 10/100/1000Mbps JetStream Gigabit Smart Switch with 24-Port PoE+ – TL-SG2428P
Hardware Features
24× 10/100/1000 Mbps PoE+ RJ45 Ports, 4× Gigabit SFP Slots
2 fans, physical security lock
Power Supply: 100–240V AC, 50/60Hz
PoE+ Ports: 24 ports (802.3at/af compliant), 250W power budget
Dimensions: 17.3×8.7×1.73 in (440×220×44 mm), Rack Mountable
Max. Power: 301.1W, Max. Heat Dissipation: 1027.40 BTU/hr
Performance:
Switching Capacity: 56 Gbps, Packet Forwarding Rate: 41.66 Mpps
MAC Address Table: 8K, Packet Buffer: 4.1 Mbit
Jumbo Frame: 9 KB
Software Features
QoS: 8 queues, 802.1p CoS/DSCP, SP/WRR scheduling, bandwidth control
L2/L2+ Features: DHCP server/relay, static routing, static ARP, STP, LLDP, mirroring, DLDP
L2 Multicast: IGMP snooping, MVR, multicast filtering, 511 groups
Advanced: Automatic discovery, batch config/upgrade, unified settings, reboot scheduling
VLAN: Max 4K VLANs, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN
ACL: 230 entries, MAC/IP/IPv6 ACLs, port/VLAN bindings, QoS policies
Security: IP-MAC-Port Binding, DoS Defend, 802.1X, DHCP/ARP inspection, Source Guard
IPv6: Dual stack, static routing, MLD snooping, ND, ICMPv6, DHCPv6, IPv6 SNMP/SSL/etc.
MIBs: MIB II, Bridge MIB, RMON MIB, Radius MIBs, TP-Link Private MIBs
Management Features
Omada App support via controller
Centralized/Cloud management via Omada Hardware, Software or Cloud Controller
Zero-Touch Provisioning support
Web GUI, CLI (Telnet), SNMP v1/v2c/v3, RMON, SDM Template, DHCP/BOOTP Client
Dual image/config, CPU monitoring, cable diagnostics, SNTP, system logs
Others
Certifications: CE, FCC, RoHS
Package: SG2428P, power cord, guide, rack kit, rubber feet
OS Support: Windows XP/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment: 0–50°C operating, -40–70°C storage, 10–90% humidity (non-condensing
