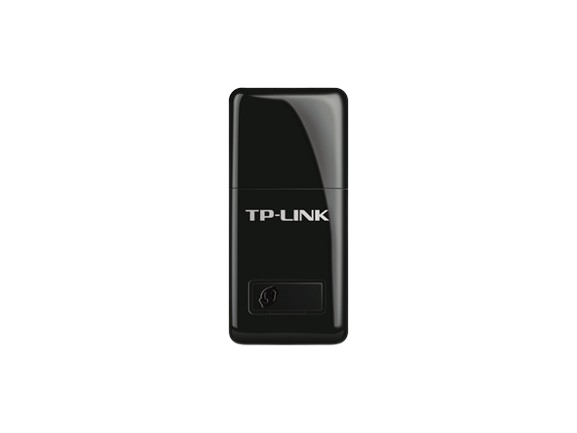

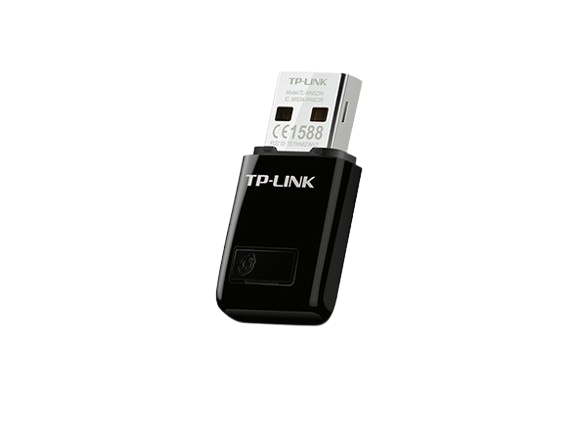

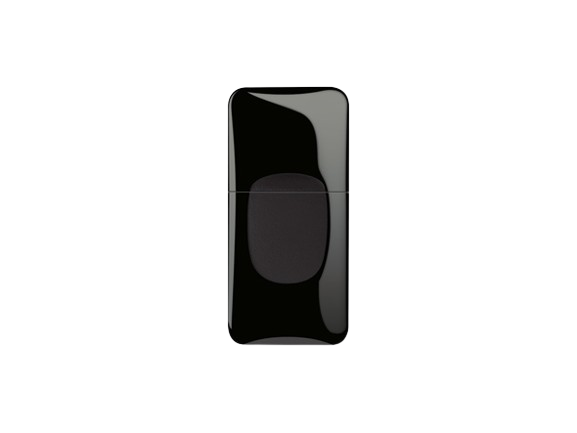

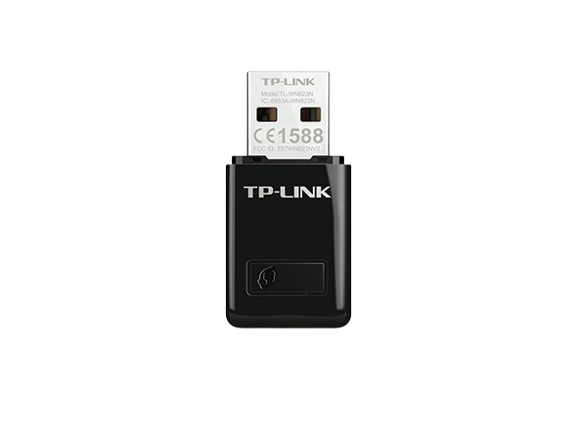

TP-Link 300Mbps Wireless N Mini USB Adapter – TL-WN823N
Hardware Features
Interface: USB 2.0
Button: Wi-Fi Protected Setup (WPS) Button
Dimensions ( W x D x H ): 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm)
Antenna: Internal
Wireless Features
Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency: 2.400~2.4835GHz
Signal Rate:
11b: Up to 11Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
Reception Sensitivity:
300M: -65dBm@10% PER
270M: -65dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -72dBm@10% PER
11M: -85dBm@8% PER
6M: -87dBm@10% PER
1M:-93dBm@8% PER
Wireless Modes: Soft AP Mode
Client Mode: (support Ad-hoc/Infrastructure network)
Wireless Security:
64/128-bit WEP
WPA-PSK / WPA2-PSK
WPA / WPA2
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Transmission Power: <20dBm (EIRP)
Others
Certification: CE, FCC, IC, RoHS

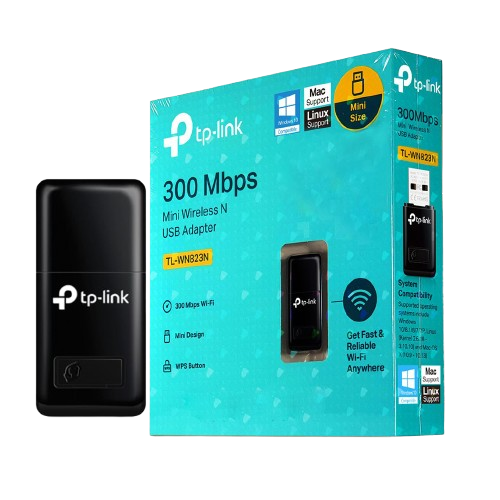

Package Content:
Wireless Adapter TL-WN823N
Resource CD
Quick Installation Guide
System Requirements:
Supports Windows 11/10/8.1/8/7/XP,
Mac OS 10.15 and earlier,
Linux
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
